Acoustic Dots 012

Modular acoustic panels formed by natural wood fins

Dots panels

Dots Acoustics Panels are designed as ceiling acoustic absorber panels to control the disturbing background noise in crowded spaces.

However, they can also be used on vertical walls with their wavy texture to create eye-catching interior designs.

They are manufactured with or without acoustic foams. Dots Acoustic features acoustic foam for spaces requiring specialised acoustic treatments.

Dots without acoustic foam on the other hand is used both for aesthetic and acoustic purposes within the Wall Vega product family, where a simple acoustic enhancement is required.

Acoustic Dots 002

Technical Details

Acoustic TypeAbsorber
Used forRT reduction, Ensuring eco control
Acoustic ClassC | ( w) = 0,75
Sound Absorption Range315 Hz – 3150 Hz
MaterialAcoustic sponge, Birch Plywood, MDFlam, Profile pipe, Aluminium frame
ColourOak, White, Anthracite
Weight6kg
Dimensions592x592x119 mm
Used inHome Theatres, Home Studios, Recording Studios, Restaurants / Cafes, Vocal Booths, Hi-Fi Listening Rooms, Living Rooms, Media Rooms

Dimensions

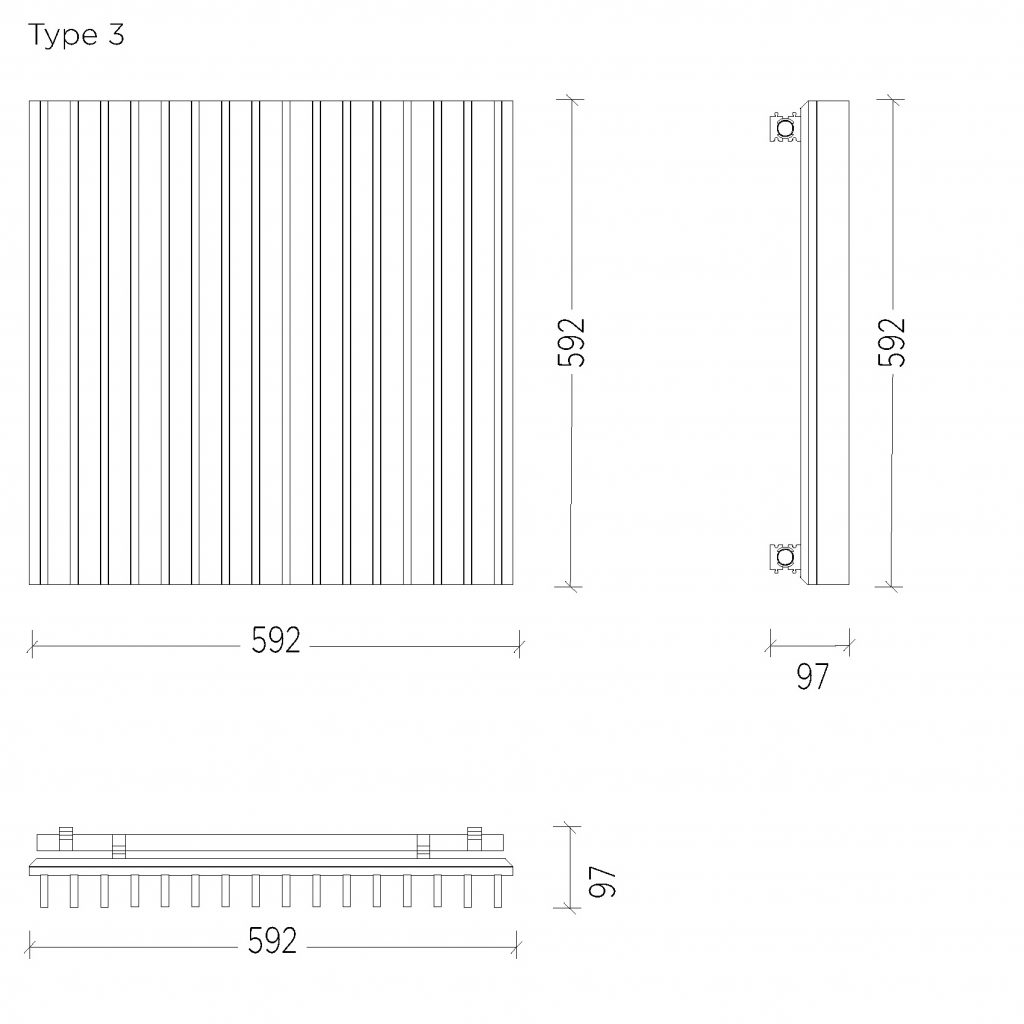

Vega tile drawing dot Type3

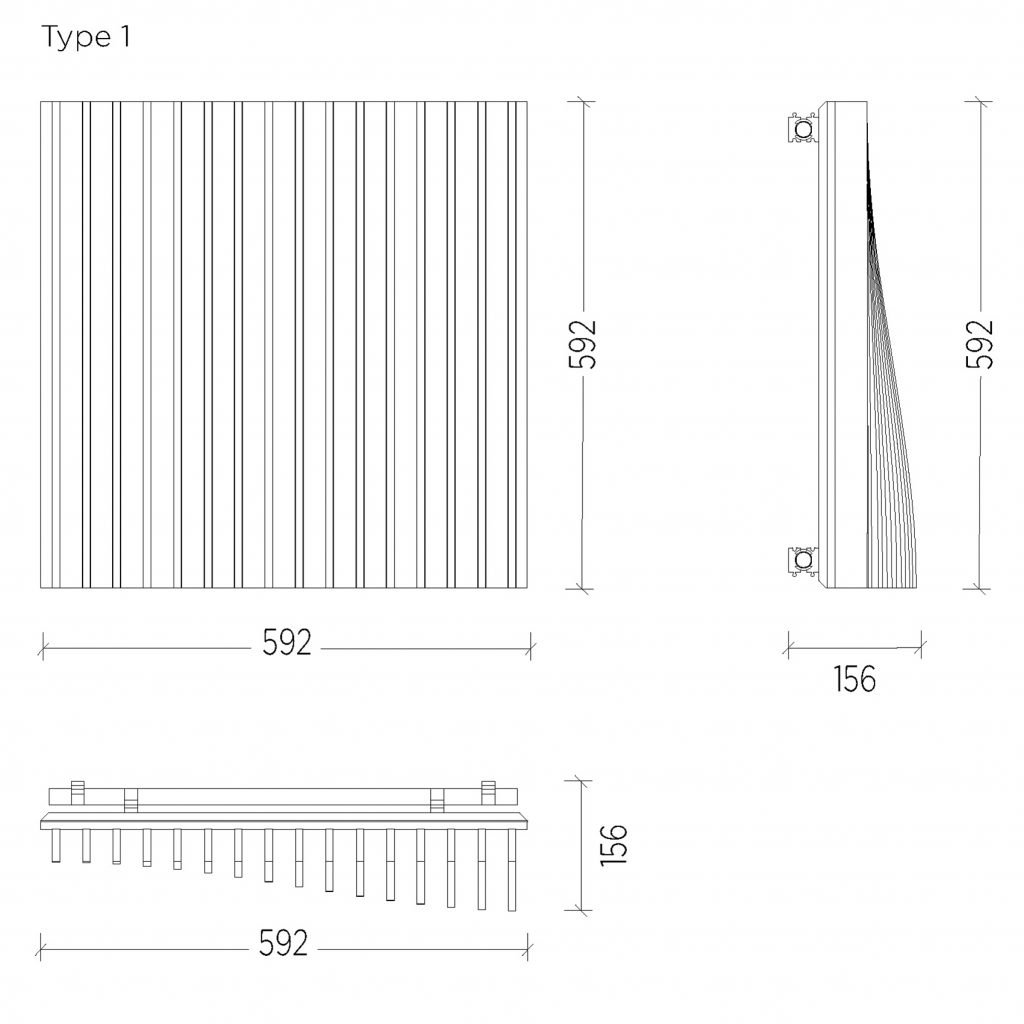

Vega tile drawing dot Type1
Vega tile drawing dot Type2

Modules

Acoustic Dots Type 03
Acoustic Dots Type 01
Acoustic Dots Type 02
